Lenze inverter i550-P3/400-3 3 kW/4 HP with keypad

Product No.:: 011224
When not in stock: approx. 7-14 business days
Stock:: 0 Pce(s).
Weight:: 6 kg per Pce(s).

This product is not in stock. The quantity entered will be supplied by us very soon.

1.101,77 EUR

excl. Shipping costs

Pce(s).:

Quantity

Add to wish list

Ask about product

Description

Description

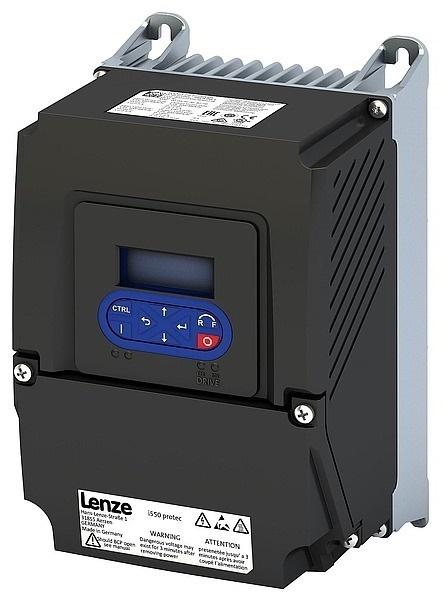

I55AP230F00710K00S Lenze inverter i550-P3/400-3 3 kW/4 HP with keypad

a slim design, exceptional user-friendliness and decentralized installation close to the motor.
It is ideal for many applications such as conveyor systems, packaging machines, fan drives and pump systems.

Highlights

First decentralized drive in the market with IO-Link interface
Sensorless vector control
Simple parameterisation
Memory module for simple series commissioning and device replacement
USB Micro diagnostic interface on board
Optionally equipped with keypad or WLAN diagnostic module

technical data:

Manufacturer: Lenze
Inverter: i550-P3/400-3
Type: I55AP230F00710K00S
Rated power: 3 [kW] / 4 [HP]
Rated mains voltage: 3/PE 400/480 [V AC] 50 [Hz]
Output current: 7,3 [A]
Output frequencies: 0-599 [Hz]
I/O extension: Standard I/O
RFI filter: Integrated
Fieldbus network: without
Mounting location: Wall
Protection Rating: IP66
Weight: 5.28 [kg]

For more information, please visit the home page for this product.
