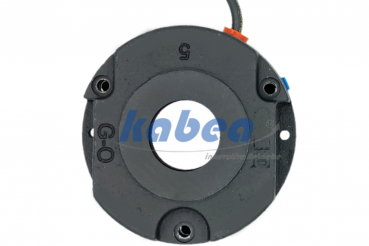

INTORQ BFK458-18N Stator 180VDC 150Nm
Electromagnetically released spring-applied brakes are used wherever masses in motion have to be decelerated as quickly as possible or where masses must be held in a defined position.
The main components of the modular system INTORQ BFK458 is the basic modules N (non-adjustable braking torque).
The greatest degree of flexibility is achieved for a broad range of applications by combining the basic modules N with specific modules.
technical data:
- Manufacturer: Intorq/Kendrion
- Type: INTORQ BFK458-18N
- Manufacturer's Part Number: 00565681
- Size: 18
- Design: N (Fixed Torque)
- Rated voltage: 180 VDC
- Characteristic torque: 150 Nm
- Weight: 12,1 kg
