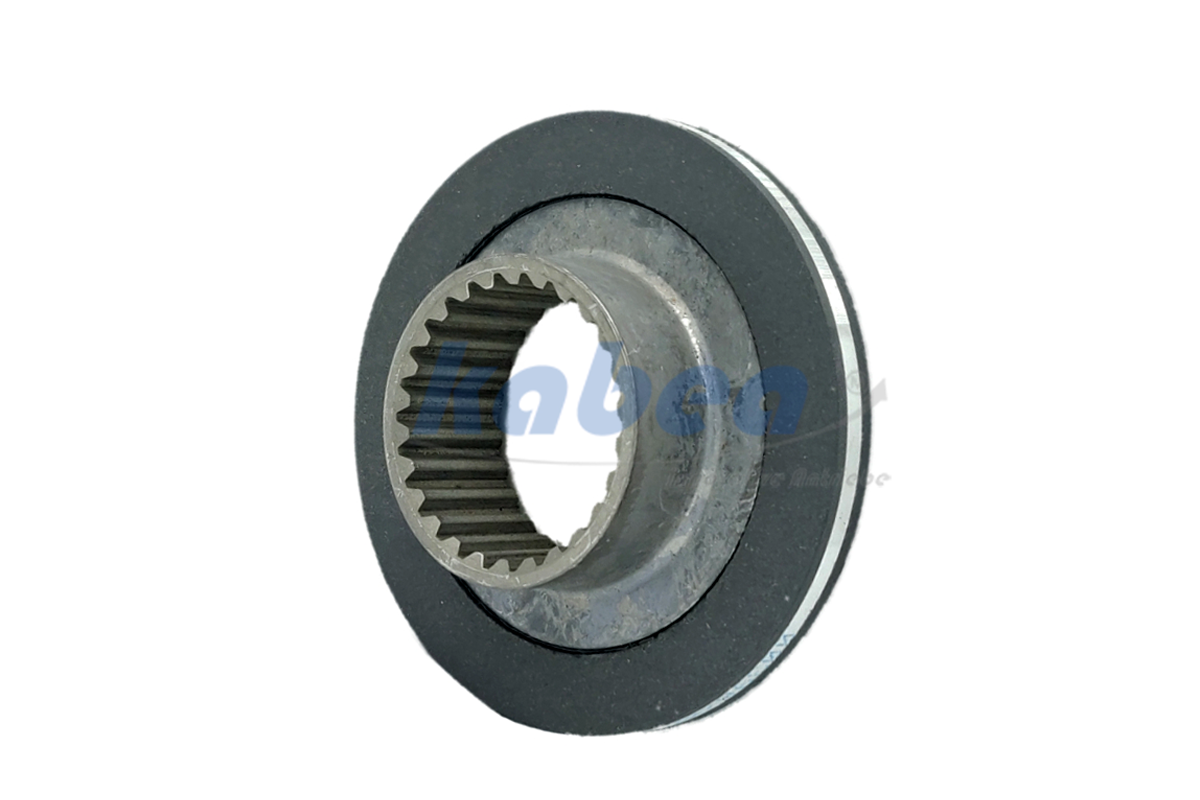

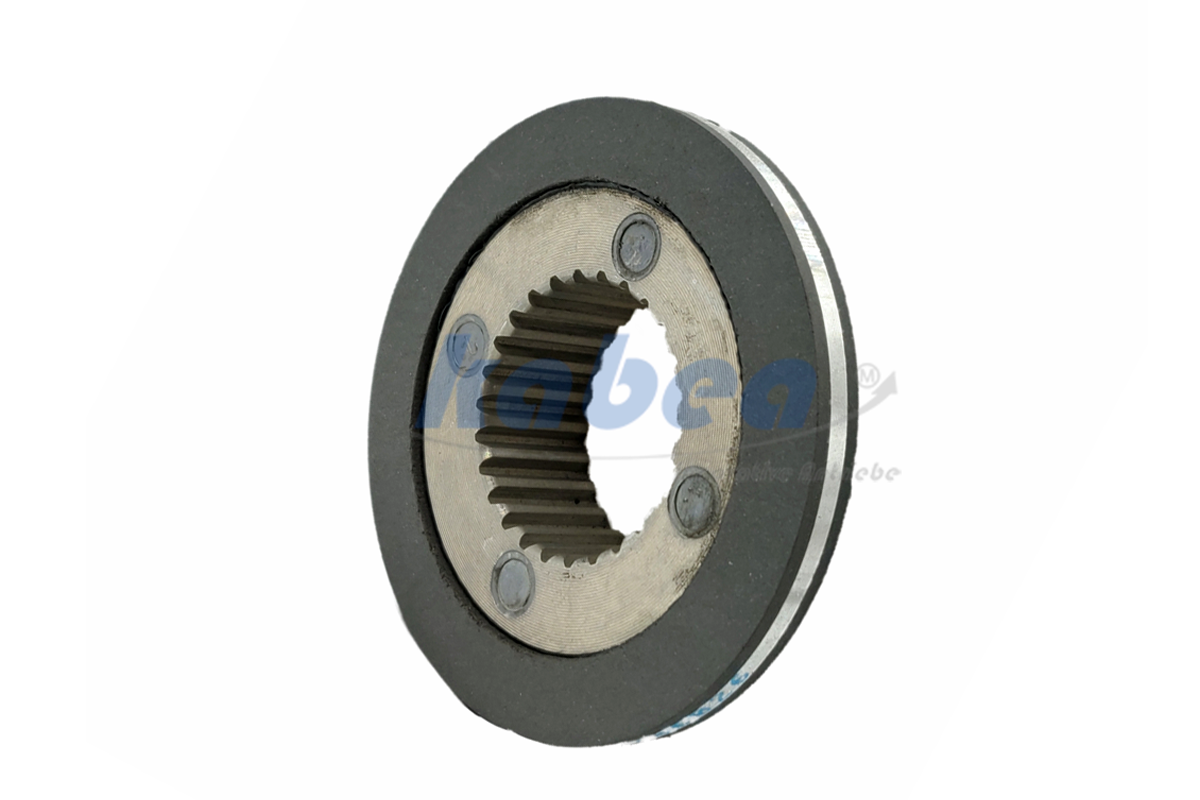

Rotor for spring-applied brake INTORQ BFK458-08 Al ST Standard
The INTORQ BFK458 brake is an electrically releasable springapplied brake with a rotating braking disk (rotor) that is equipped with friction linings on both sides.
In a de-energised state, the rotor is stretched between the armature plate and a counter friction face by a normal brake force that is produced by pressure springs.
technical data:
- Manufacturer: Intorq/Kendrion
- Type: INTORQ BFK458
- Size: 08
- Material: Aluminum
- Version: Standard
- Ident-No. of the manufacturer: 00396200
- Weight: 0,08 kg
