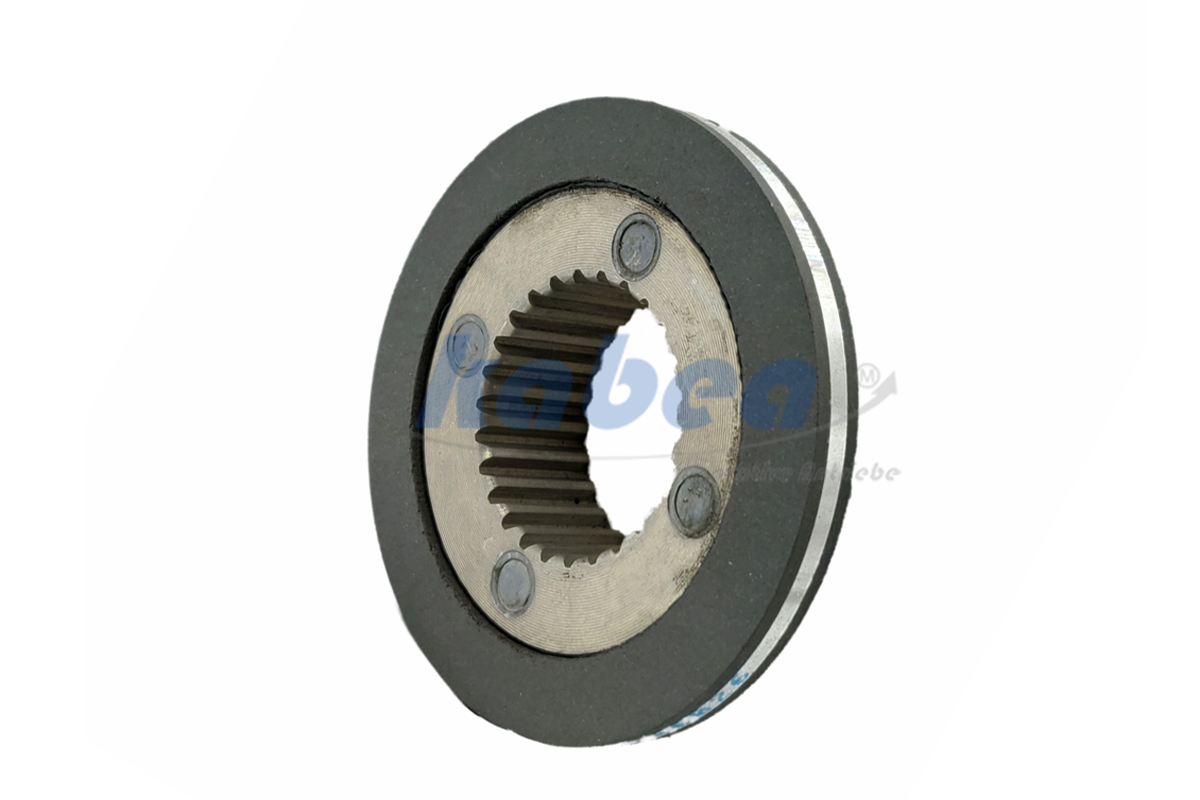

Rotor for spring-applied brake Intorq BFK458-06 ALG WR Low-wear and noise-reduced
The INTORQ BFK458 brake is an electrically releasable spring-applied brake with a rotating braking disk (rotor) that is equipped with friction linings on both sides.
In a de-energized state, the rotor is stretched between the armature plate and a counter friction face by a normal brake force that is produced by pressure springs.

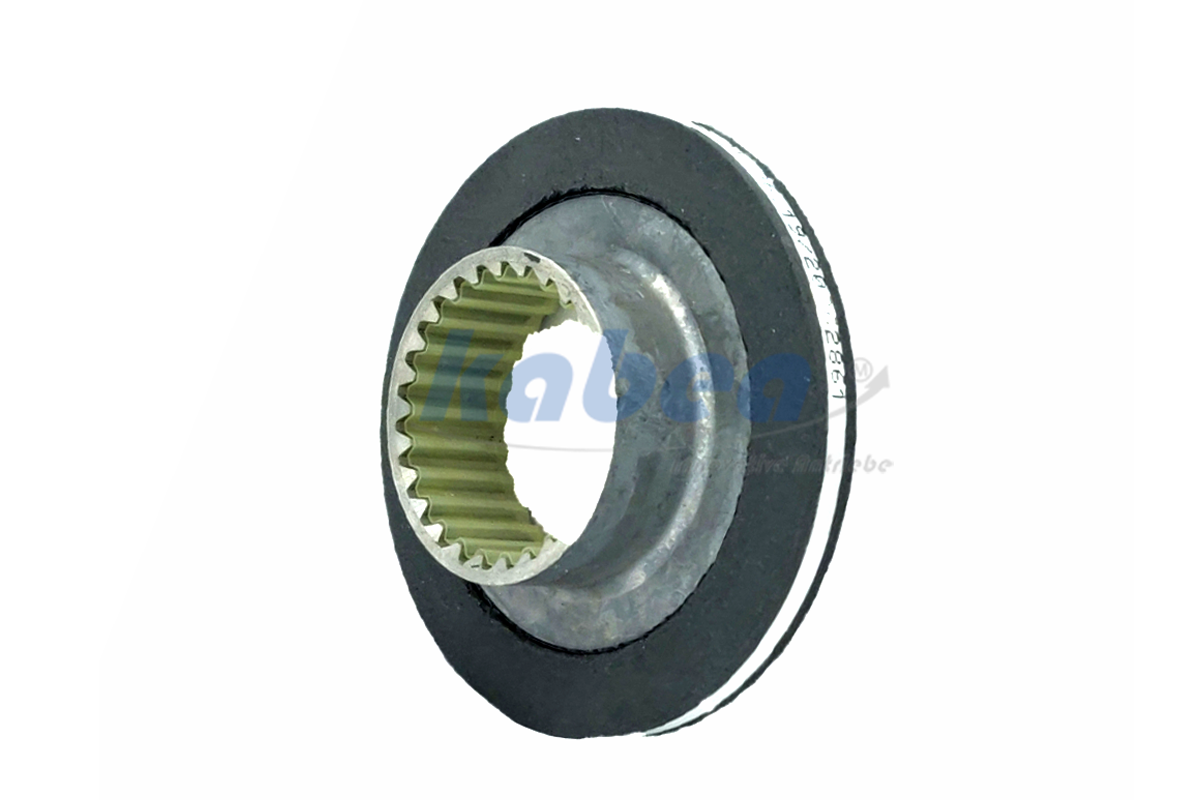

A plastic sleeve reduces the noise between the rotor and hub (recommended for inverter operation).
This reduces torsional backlash and increases the service life of the brake. Recommended for operation on a motor with an inverter.
technical data:
- Manufacturer: Intorq/Kendrion
- Type: INTORQ BFK458
- Size: 06
- Material Aluminum
- Version: Low-wear and noise-reduced
- Ident-No. of the manufacturer: 00426422
- Weight: 0.06 kg
