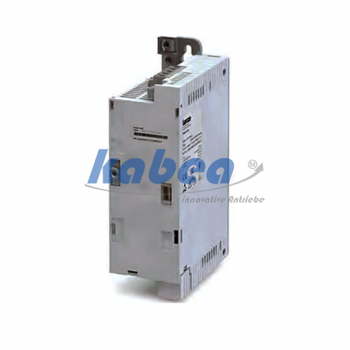

Lenze inverter i5D0.75/230-1 Power Unit 0,75 kW/1,0 HP

I5DAE175B10V10000S Lenze inverter i5D0.75/230-1 Power Unit

For more flexibility is the i550 available in individual components  (Power Unit, Control Unit and Safety Unit).
This reliable drive is ideal for conveyor, travelling, and winding drives, for pumps , hoist drives ,winding drives, fans and many other machine tasks.
The modular system enables various product configurations depending on machine requirements. Extensions, such as a plug-on keypad or plug-on WLAN module, simplify commissioning and diagnostics. Thus, the parameters can be set conveniently via a smartphone app using the WLAN module.
The scalable inverter is completed by an accessory kit. Simply select all the necessary components oriented to your application.

Highlights:

• Space saving design: 60 mm wide (up to 4 kW), 130 mm deep (up to 11 kW), with zero-clearance mounting
• Innovative interaction options enable better set-up times than ever.
• The wide-ranging modular system enables various product configurations depending on machine requirements
• Optionally with "Safe Torque Off (STO)" with SIL 3 (ISO 13849-1 (EN 954-1) ) and
• IP20 Degree of protection, NEMA Open Type
• Overload behavior  200 % for 3s; 150 % for 60s
• Top efficiency class for inverters with IE2 in accordance with EN 50598-2
•  Safe Torque Off (STO) Option

Functions:

• V/f characteristic control linear/quadratic (VFC plus)
• Sensorless vector control (SLVC)
• Energy saving function (VFC-Eco)
• Servo control (SC-ASM) with feedback
• Sensorless vector control for synchronous motors (up to 22 kw)
• Vector control with feedback
• V/f characteristic control with feedback
• DC braking
•  Brake management for low-wear brake control
•  Dynamic braking through brake resistance
• S-ramps for smooth acceleration and delay
•  Flying restart circuit, PID controller

Communication:

CANopen, EtherCAT, EtherNet/IP, I/O link, Modbus, PROFIBUS, PROFINET, ModbusTCP/IP, POWERLINK, IO-Link
A control unit is also required for operation.

Technical data:

• Type: i5D0.75/230-1
• Manufacturer:  Lenze
• Rated power:  0,75 [kW]/ 1,0 [HP]
• Rated mains voltage:  1/PE 230 [VAC] 50 [Hz]
• Output current: 4,2 [A]
• Output frequencies: 0-599 [Hz]
• RFI filter: Integrated
• Mounting location: control cabinet
• Protection Rating:  IP20
• Dimensions:  h180 x w60 x d130 [mm]
• Weight: 1 [kg]
