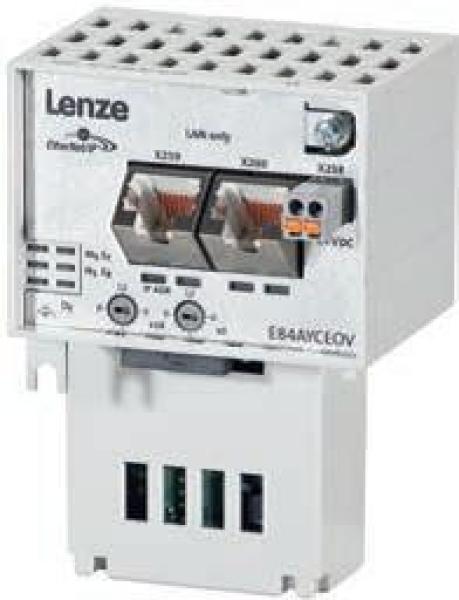

E84AYCEOV EtherNet/IP communication module
A communication module is used to connect the 8400 StateLine, HighLine or TopLine to a bus system.
Features
- 5 LEDs for status display
- 2 RJ45 connections with LEDs for link and activity
- Address can be set via 2 rotary DIP switches
- TCP/IP channel
- ODVA certification (Open Device Vendor Association)
- Supported assembly object instances as per ODVA: 20, 21, 22, 23 and 70, 71, 72, 73
- Manufacturer-specific supported assembly object instances (custom): 110 and 111
- Connection option for separate 24 V supply
technical data
- Manufacturer: Lenze
- Type: E84AYCEOV
- Module- type: Communication module
- Communication profile: EtherNet/IP
- Interface for communication: 2x RJ45
