Product No.:
E84AVTCE1522SB0
approx. 7-14 business days approx. 7-14 business days
Weight:
3 kg per piece
1.467,61 EUR

excl. Shipping costs

Add to wish list
Ask about product
Description

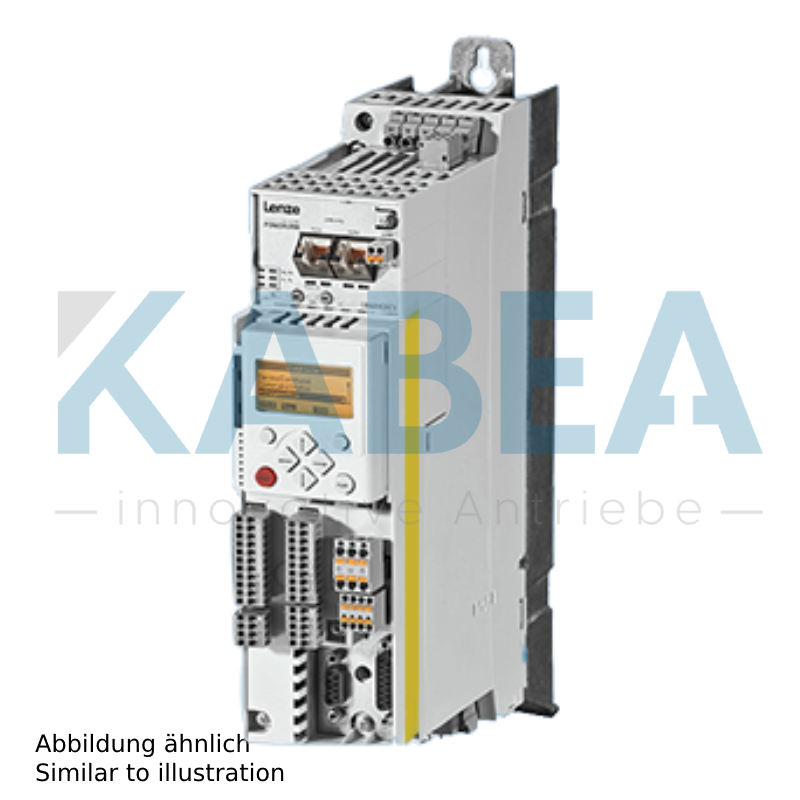

E84AVTCE1522SB0​ Lenze inverter 8400 TopLine 230V 1.5kW STO

The 8400 TopLine offers the maximum level of functionality and optimum drive behaviour within the 8400 series, providing precisely tailored solutions.
Furthermore, TopLine represents a costeffective solution for speed-controlled and position-controlled applications, as well as synchronised and positioning applications.
Cross communication between multiple TopLine units requires minimum wiring (3-core), as it runs via the separate axis bus. Alongside asynchronous motors, TopLine also supports dynamic synchronous motors via feedback.
Benefit from precisely tailored, cost-optimised Lenze drive units, consisting of prepared system cables, motors and gearboxes, feedback, brakes, fans and of course the 8400 TopLine.

Functions:

  • DC brake function
  • Flying restart circuit, PID controller
  • Sensorless vector control
  • "VFC eco" energy saving function
  • Sensorless control of synchronous motors (SLPSM)
  • Brake management for brake control with low rate of wear
  • Logic functions, comparator, counter, arithmetic function
  • Freely interconnectable function blocks
  • Point-to-point positioning (with and without feedback)
  • S-ramps for smooth acceleration and deceleration
  • Servo control for synchronous and asynchronous motors
  • Electrical shaft with adjustable ratio (electronic gearbox)
  • Positioning sequence control
  • KTY temperature sensor evaluation

Interfaces:

  • Memory modules, L-force diagnostics interface
  • DIP switch for CANopen (on board)
  • Integrated brake chopper
  • External 24 V supply
  • Digital inputs / outputs (8/4), analog inputs / outputs (2/2), relay
  • Slot for EtherCAT, EtherNET/IP, PROFIBUS or PROFINET communication module
  • PTC/thermal contact input
  • Resolver input and multiple encoder input
  • Axis bus (for cross communication, synchronisation)

Technical Data:

  • Manufacturer: Lenze
  • Rated power: 1,5 [kW] / 2 [HP]
  • Rated mains voltage: 1/N/PE 230 [VAC] 50 [Hz]
  • Output current: 7 [A]
  • Output frequencies: 0-599 [Hz]
  • Mounting location: control cabinet
  • Safety engineering: STO
  • Protection Rating:  IP20
  • Dimensions:  h270 x b70 x d214 [mm]
  • Weight: 2,3 [kg]
