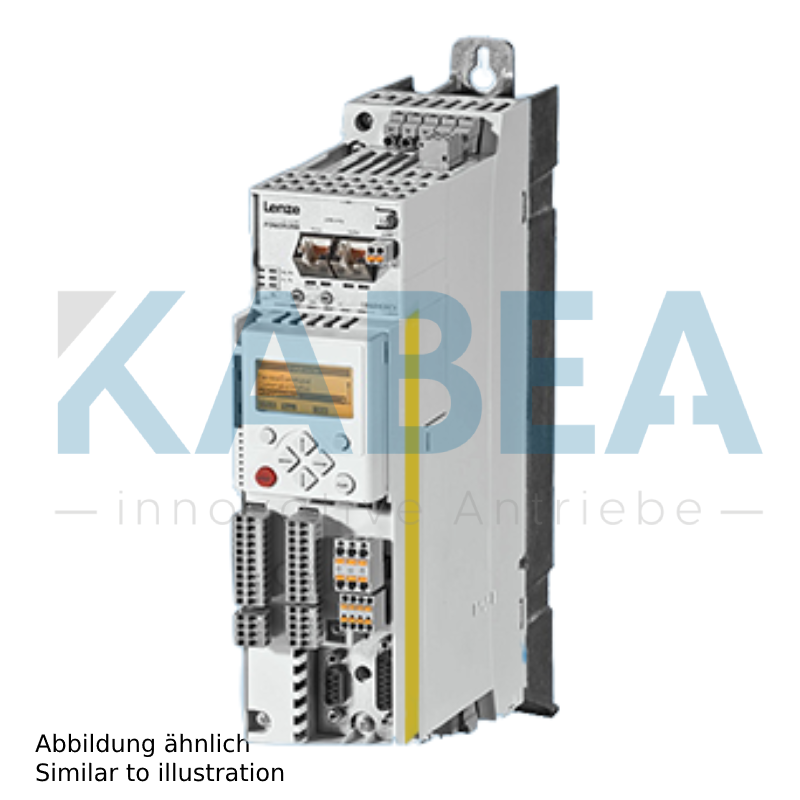

Lenze inverter 8400 TopLine 230V 2.2kW / 3HP STO

E84AVTCE2222SB0  Lenze inverter 8400 TopLine 230V 2.2kW / 3HP STO

The 8400 TopLine offers the maximum level of functionality and optimum drive behaviour within the 8400 series, providing precisely tailored solutions.
Furthermore, TopLine represents a costeffective solution for speed-controlled and position-controlled applications, as well as synchronised and positioning applications.
Cross communication between multiple TopLine units requires minimum wiring (3-core), as it runs via the separate axis bus. Alongside asynchronous motors, TopLine also supports dynamic synchronous motors via feedback.
Benefit from precisely tailored, cost-optimised Lenze drive units, consisting of prepared system cables, motors and gearboxes, feedback, brakes, fans and of course the 8400 TopLine.

Functions:

• DC brake function
• Flying restart circuit, PID controller
• Sensorless vector control
• "VFC eco" energy saving function
• Sensorless control of synchronous motors (SLPSM)
• Brake management for brake control with low rate of wear
• Logic functions, comparator, counter, arithmetic function
• Freely interconnectable function blocks
• Point-to-point positioning (with and without feedback)
• S-ramps for smooth acceleration and deceleration
• Servo control for synchronous and asynchronous motors
• Electrical shaft with adjustable ratio (electronic gearbox)
• Positioning sequence control
• KTY temperature sensor evaluation

Interfaces:

• Memory modules, L-force diagnostics interface
• DIP switch for CANopen (on board)
• Integrated brake chopper
• External 24 V supply
• Digital inputs / outputs (8/4), analog inputs / outputs (2/2), relay
• Slot for EtherCAT, EtherNET/IP, PROFIBUS or PROFINET communication module
• PTC/thermal contact input
• Resolver input and multiple encoder input
• Axis bus (for cross communication, synchronisation)

Technical Data:

• Manufacturer:   Lenze
• Rated power: 2,2 [kW] /3[HP]
• Rated mains voltage : 1/N/PE 230 [VAC] 50 [Hz]
• Output current:  9,5 [A]
• Output frequencies: 0-599 [Hz]
• Mounting location: control cabinet
• Safety engineering: STO
• Protection Rating: IP20
• Dimensions: h270 x b70 x d214 [mm]
• Weight: 2,3 [kg]
