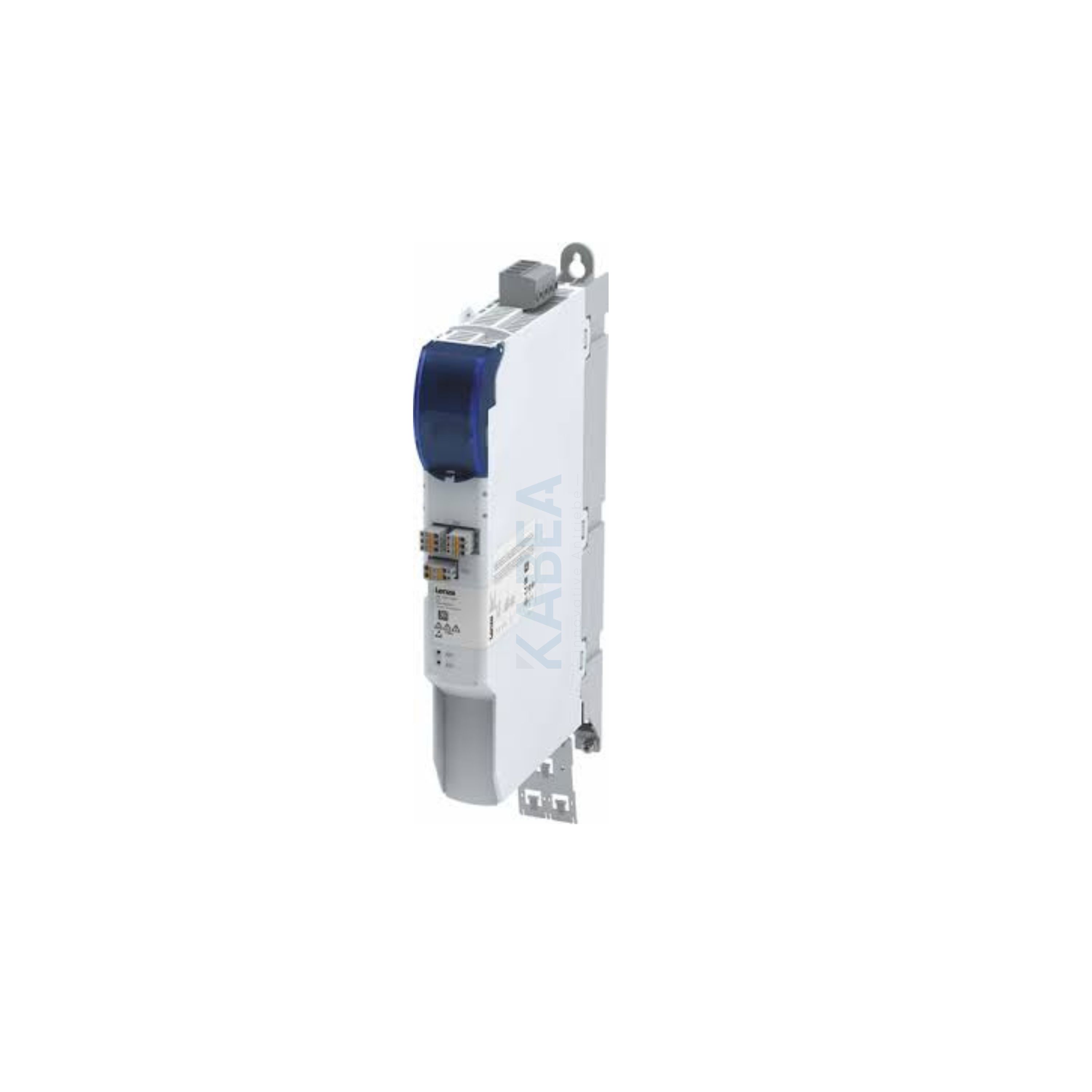

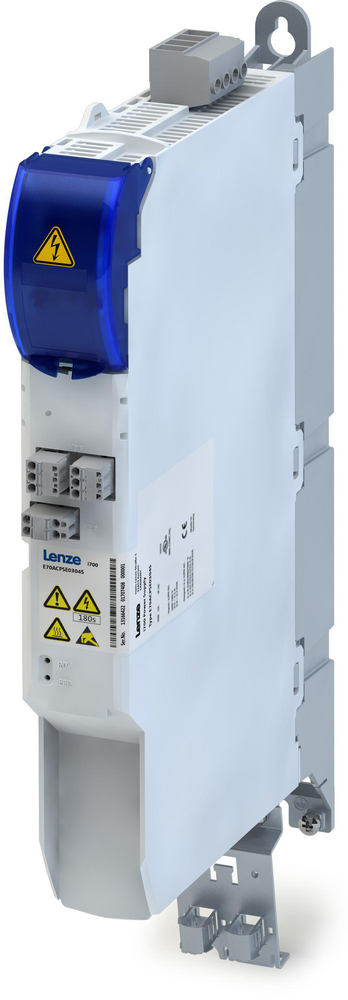

E70ACPSE0304S Lenze Power Supply Module i700-CV30/400-3
Power supply module for use with Lenze i700/i750 Servo-Inverters.
The device provides the connection between the i700 / i750 Servo controller to the 400 volt mains. It supplies the servo controllers at DC link level via busbars.
We recommend the use of a mains choke upstream of the supply module.
Technische Daten:
- Type: E70ACPSE0304S
- Manufacturer: Lenze
- Rated power without main choke: 10.3 [kW]
- Rated power with main choke: 15.4 [kW]
- Rated mains voltage: 3/PE 400 [VAC] 50/60 [Hz]
- Output current: 30 [A]
- Installation location: Switch cabinet
- Protection class: IP20
- HS-Code: 85044082
- Country of origin: DE-Germany
- Dimensions: H350 x W50 x D261 [mm]
- Weight per piece: 3.2 [kg]
