BFK458-06E Spring-applied brake Intorq
Electromagnetically released spring-applied brakes are used wherever masses in motion have to be decelerated as quickly as possible or where masses must be held in a defined position.
The braking force is applied by tappet springs. Thus the braking torque generated by friction locking remains available in the deenergised status – even in the event of mains failure. The brake is released electromagnetically.
Fields of application:
Brake motors, Conveyors, Cranes, Storage technology, Industrial trucks, Wood working machines, Stage machinery, Vehicles for the disabled, Automation technology, Controlled drives, Gate drives and Escalators.
Reducing braking torque:
Basic module E (adjustable braking torque) : unscrewing the centrally located torque adjustment ring can reduce the spring force and, with it, the braking torque.

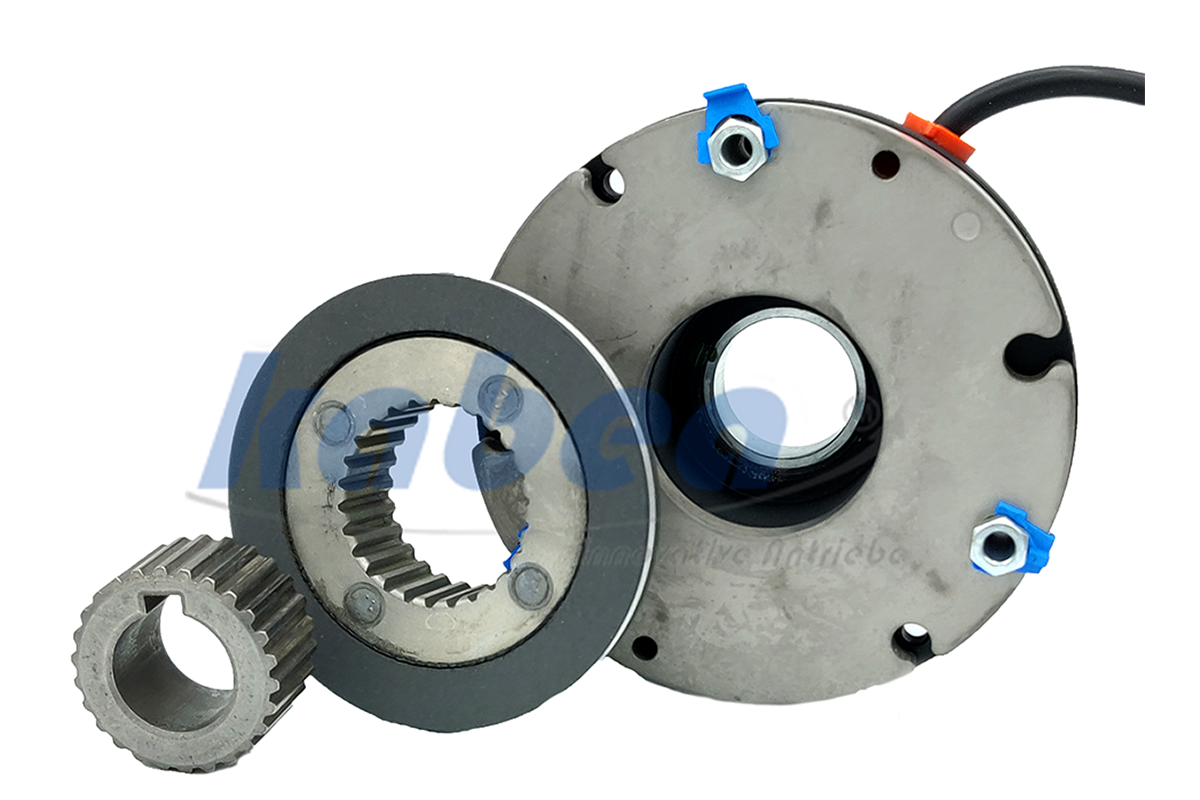

Complete brake consisting of:
- Stator (Magnet-part) complete Basic E- Adjustable
- Rotor (standard with aluminium)
- Hub
technical date:
- Manufacturer: Intorq
- Type: BFK458
- size: 06
- Design: E – adjustable braking torque
- Characteristic torque: 4 Nm max
