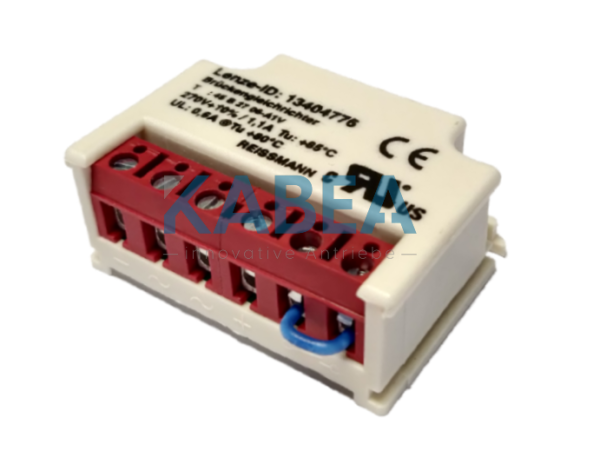

FS27T000 Bridge rectifier/45B2711 6-pole
Application area: Current supply for spring-applied brakes from AC mains (normal excitation).
Example: 205 VDC coil on 230VAC mains
The rectifiers are protected against overvoltage by input and output varistors.
Technical data:
- Manufacturer: Lenze / REISSMANN
- Type: FS27T000
- Manufacturer code: 45B2706A1V
- Connection: 6-polig
- Max. mains voltage: 270 V~
- Max. DC current: 0,6 A at 80 °C
- Max. ambient temperature: 80 °C
- Mounting position: horizontal
