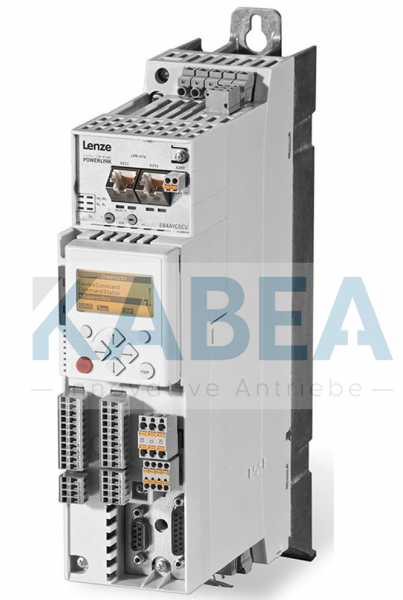

E84AVTCE1124SX0 Lenze inverter 8400 TopLine 1.1kW / 1.5HP
The 8400 TopLine offers the maximum level of functionality and optimum drive behavior within the 8400 series, providing precisely tailored solutions.
Furthermore, TopLine represents a cost-effective solution for speed-controlled and position-controlled applications, as well as synchronized and positioning applications.
Cross communication between multiple TopLine units requires minimum wiring (3-core), as it runs via the separate axis bus. Alongside asynchronous motors, TopLine also supports dynamic synchronous motors via feedback.
Benefit from precisely tailored, cost-optimized Lenze drive units, consisting of prepared system cables, motors and gearboxes, feedback, brakes, fans and of course the 8400 TopLine.
Functions:
- DC brake function
- Flying restart circuit, PID controller
- Sensorless vector control
- "VFC eco" energy-saving function
- Sensorless control of synchronous motors (SLPSM)
- Brake management for brake control with a low rate of wear
- Logic functions, comparator, counter, arithmetic function
- Freely interconnectable function blocks
- Point-to-point positioning (with and without feedback)
- S-ramps for smooth acceleration and deceleration
- Servo control for synchronous and asynchronous motors
- Electrical shaft with adjustable ratio (electronic gearbox)
- Positioning sequence control
- KTY temperature sensor evaluation
Interfaces:
- Memory modules, L-force diagnostics interface
- DIP switch for CANopen (onboard)
- Integrated brake chopper
- External 24 V supply
- Digital inputs / outputs (8/4), analog inputs / outputs (2/2), relay
- Slot for EtherCAT, EtherNET/IP, PROFIBUS, or PROFINET communication module
- PTC/thermal contact input
- Resolver input and multiple encoder input
- Axis bus (for cross communication, synchronisation)
Technical Data:
- Manufacturer: Lenze
- Rated power: 1,1 [kW] /1.5 [HP]
- Rated mains voltage: 3/PE 400 [VAC]
- Output current: 3,2 [A]
- Output frequencies: 0-599 [Hz]
- Mounting location: control cabinet
- Protection Rating: IP20
- Dimensions: h217 x b70 x d214 [mm]
- Weight: 2,1[kg]
