Lenze inverter 8400 BaseLine 400V 0.37kW / 0.5HP CANopen
Lenze inverter 8400 BaseLine 400V 0.37kW / 0.5HP CANopen
Lenze inverter 8400 BaseLine 400V 0.37kW / 0.5HP CANopen

Lenze inverter 8400 BaseLine 400V 0.37kW / 0.5HP CANopen

Product No.:
E84AVBCE3714SX0
approx. 45 weeks approx. 45 weeks
Weight:
1 kg per piece
Price on request
Ask about product
Description

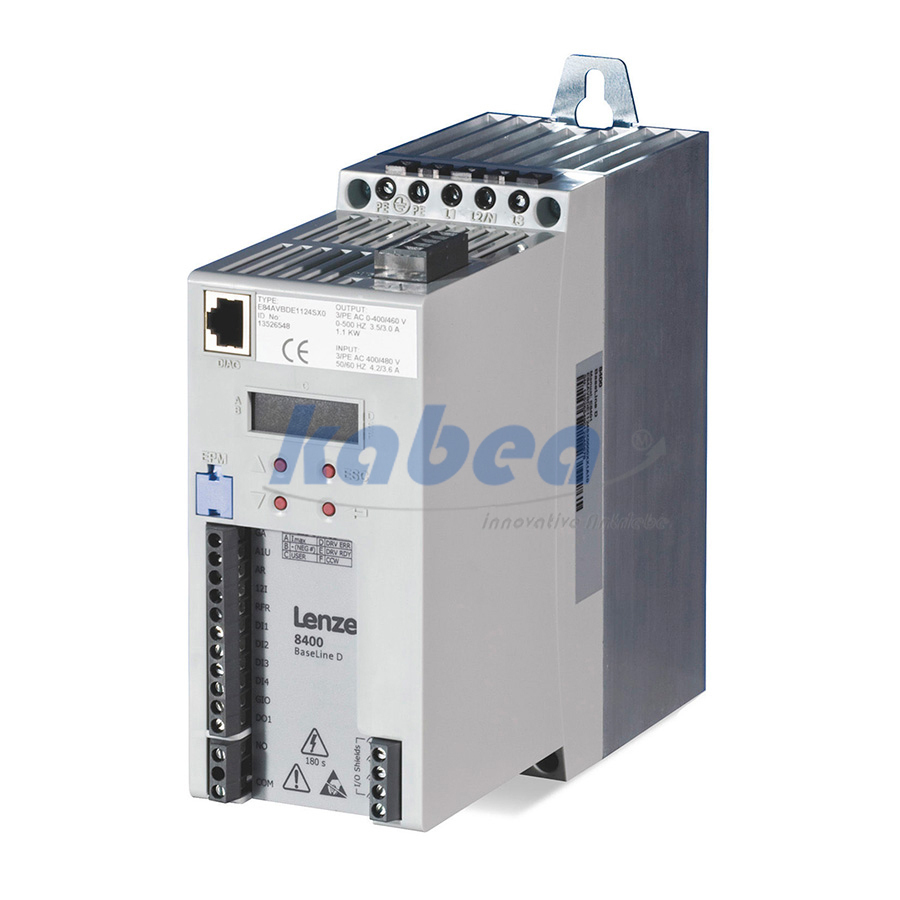

E84AVBCE3714SX0 Lenze inverter 8400 Base Line 0.37kW / 0.5HP AC 400 V with CANopen

The BaseLine version is the entry-level model in terms of functionality and drive behaviour.
Featuring an integrated keypad and everything you would expect from a modern frequency inverter suitable for universal use, the 8400 BaseLine is the ideal solution for applications such as conveyor drives, pumps, fans or ventilators.

Highlights

  • Freely assignable user menu

  • DC brake function
  • Flying restart circuit
  • S-shaped ramps for smooth acceleration
  • PID controller
  • 3 fixed frequencies
  • Conrol types, motor control Sensorless vector control (SLVC) or V/f control (VFCplus)
  • Data logger, logbook, oscilloscope functions
  • Monitoring and protective measures Short circuit, Earth fault, Overvoltage, Overcurrent​ and Motor stalling
  • Diagnostic interface Integrated: For USB diagnostic adapter or keypad E94AZCUS (diagnosis terminal)

Technical data:

  • Manufacturer: Lenze

  • Type: E84AVBCE3714SX0
  • Series: 8400 BaseLine
  • Rated power: 0,37 [kW] / 0.5 [HP]
  • Rated mains voltage: 3/PE 400 [VAC]
  • Output current: 1,3  [A]
  • Output frequencies: 0-599 [Hz]
  • Mounting location: control cabinet
  • Communication: CANopen
  • Dimensions: h165 x b70 x d162 [mm]
  • Weight: 1.2 [kg]
