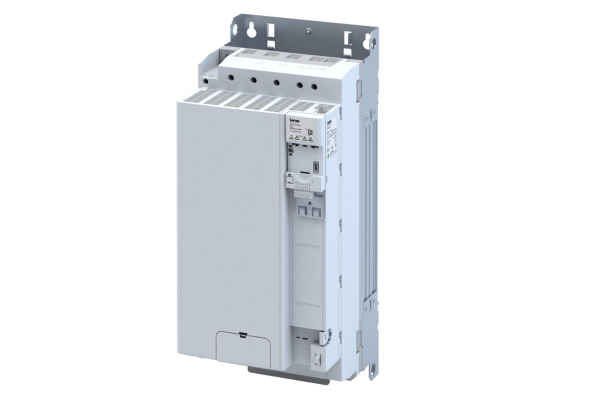

Lenze inverter i550-C75/400-3 75 kW/100 HP

I55AE375F10V10000S Lenze inverter i550-C75/400-3 75 kW/100 HP

This Product is a i550 complete inverter device  with Standard I/O extension (Power Unit and Control Unit).
This reliable drive is ideal for conveyor, travelling, and winding drives, for pumps , hoist drives ,winding drives, fans and many other machine tasks.
The modular system enables various product configurations depending on machine requirements. Extensions, such as a plug-on keypad or plug-on WLAN module, simplify commissioning and diagnostics. Thus, the parameters can be set conveniently via a smartphone app using the WLAN module.
The inverter complies with the standard EN 50598-2 that will take effect from 2020.
The scalable inverter is completed by an accessory kit. Simply select all the necessary components oriented to your application.

Highlights

• Space saving design: 60 mm wide (up to 4 kW), 130 mm deep (up to 11 kW), with zero-clearance mounting
• Innovative interaction options enable better set-up times than ever.
• The wide-ranging modular system enables various product configurations depending on machine requirements
• Optionally with "Safe Torque Off (STO)" with SIL 3 (ISO 13849-1 (EN 954-1) ) and
• IP20 Degree of protection, NEMA Open Type
• Overload behavior  200 % for 3s; 150 % for 60s
• Top efficiency class for inverters with IE2 in accordance with EN 50598-2
• Safe Torque Off (STO) Option

Functions:

• V/f characteristic control linear/quadratic (VFC plus)
• Sensorless vector control (SLVC)
• Energy saving function (VFC-Eco)
• Servo control (SC-ASM) with feedback
• Sensorless vector control for synchronous motors (up to 22 kw)
• Vector control with feedback
• V/f characteristic control with feedback
• DC braking
• Brake management for low-wear brake control
• Dynamic braking through brake resistance
• S-ramps for smooth acceleration and delay
• Flying restart circuit, PID controller

Communication:

CANopen, EtherCAT, EtherNet/IP, I/O link, Modbus, PROFIBUS, PROFINET, ModbusTCP/IP, POWERLINK, IO-Link

Technical data:

• Type: i550-C75/400-3
• Manufacturer: Lenze
• Rated power:75[kW] /100 [HP]
• Rated mains voltage: 3/PE 400/480 [VAC] 50/60 [Hz]
• Output current: 150 [A]
• Output frequencies: 0-599 [Hz]
• I/O extension: Standard I/O
• RFI filter: Integrated
• Mounting location: control cabinet
• Protection Rating: IP20
• Weight: 24 [kg]
