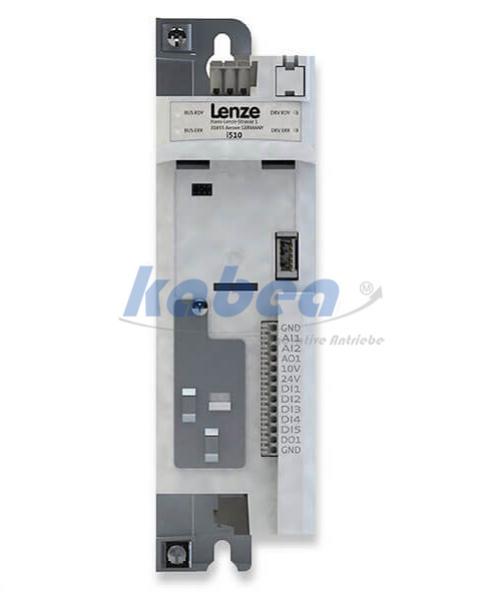

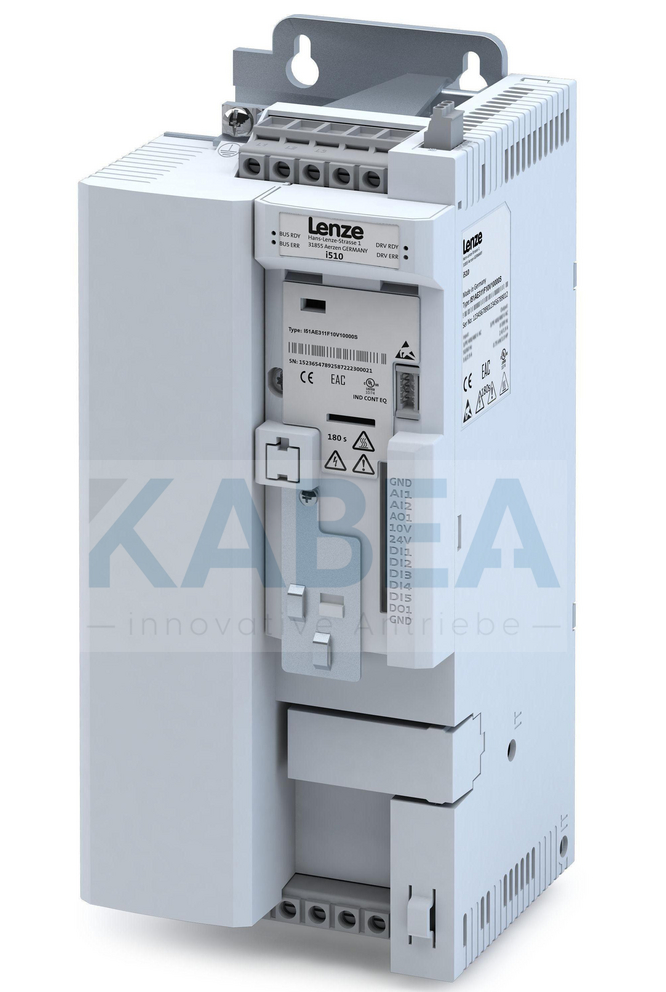

I51BE311F10V10000S Lenze inverter i510-C11/400-3
i510 is Lenze's new inverter series - a streamlined design, scalable functionality and exceptional user-friendliness.
Overall, this provides a reliable and future-proof drive for a wide range of machine applications.
This reliable drive is ideal for conveyor, travelling, and winding drives, for pumps and fans and many other machine tasks.
Highlights:
- Compact size only 120 mm wide and 130 mm deep
- Can be bayed directly, without external cooling
- Extensive range of accessories
- EASY Starter" diagnostic software free of charge
- Overload behaviour: 200 % for 3 s; 150 % for 60 s
Functions:
- V/f characteristic control linear/quadratic (VFC plus)
- Sensorless vector control (SLVC)
- Energy saving function (VFC-Eco)
- Sensorless vector control for synchronous motors
- DC braking
- Brake management for low-wear brake control
- S-ramps for smooth acceleration and delay
- Flying restart circuit, PID controlle
Technical data:
- Manufacturer: Lenze
- Rated power: 11 kW / 15 HP
- Rated mains voltage: 3/PE 400/480 VAC
- Output current: 23,5A
- Output frequencies: 0-599 Hz
- I/O extension: Basic I/O
- RFI filter: Integrated
- Mounting location: control cabinet
- Protection code: IP20
- Dimensions: H250 x B120x T130 mm
- Weight per piece: 4,35 kg
