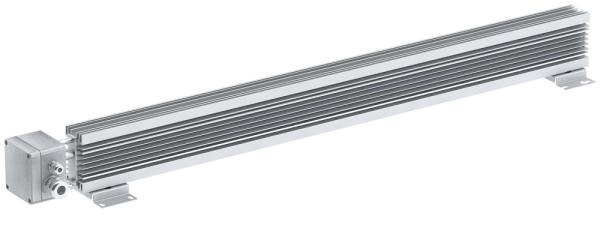

ERBS027R01K2 Brake resistor 27 Ohm 1200 Watt
Required when braking larger moments of inertia or for longer periods of regenerative operation.
suitable for Lenze frequency inverters i550, 8400 StateLine, HighLine, TopLine
and Lenze servo inverters i750, i950, i9400
technical data:
- Manufacturer: Lenze
- Permanent power: 1200 Watt
- Rated resistance: 27 Ohm
- Max. operating voltage: 800 VDC
- Thermal capacity: 180 kJ
- Protection rating: IP66
- Approbation: cURus
- Dimensions: L1020 x W114 x H105mm
- Weight per piece: 10 kg
