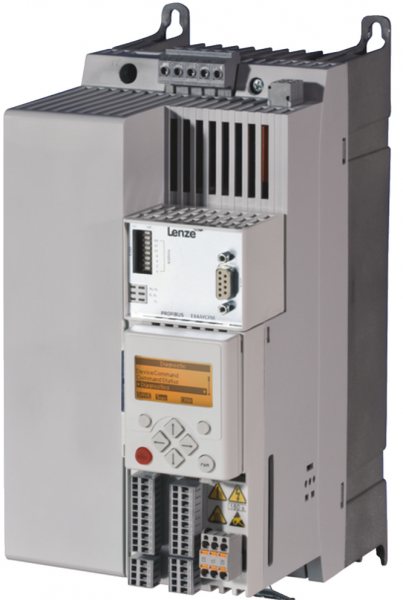

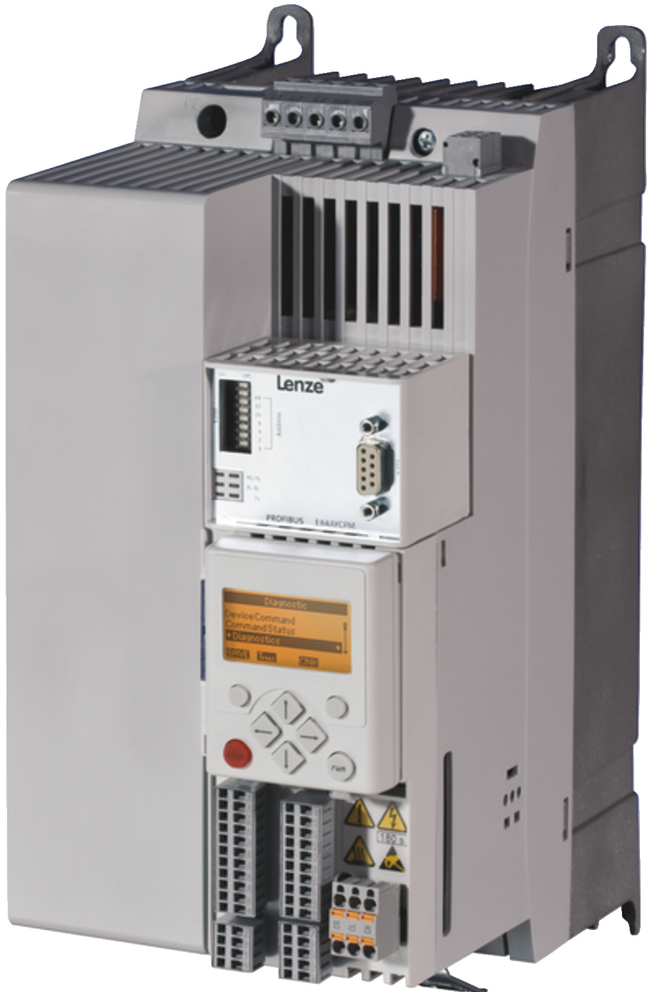

E84AVSCE5524SX0 Lenze inverter 8400 StateLine 5.5kW / 7.5HP
The 8400 StateLine is ideal for applications in conveyor technology /indoor logistics, for drives in the plastics industry, for filling systems and packaging plants.
An attachable X400 keypad with plain text display is used for diagnostics and parameterisation (see accessories).
Inputs for HTL incremental encoders complete the picture of the universally applicable inverter.
Basic functions:
- DC brake function
- Flying restart circuit, PID controller
- Sensorless vector control
- "VFC eco" energy saving function
- Sensorless control of synchronous motors (SLPSM)
- Brake management for brake control with low rate of wear
- Logic functions, comparator, counter, arithmetic function
- Feedback systems: HTL incremental encoder (10 kHz)
Diagnostics:
- Data logger, logbook, oscilloscope functions
- Status display: 4 LEDs
- Diagnostic interface Integrated
- For USB diagnostic adapter or keypad (diagnosis terminal)
- Braking operation
- Brake chopper Integrated
- Brake resistor External
Technical data:
- Manufacturer: Lenze
- Type: E84AVSCE5524SX0
- Series: 8400 StateLine
- Rated power: 5,5 [kW] / 7,5 [HP]
- Rated mains voltage: 3/PE 400 [VAC]
- Output current: 13 [A]
- Output frequencies: 0-599 [Hz]
- Mounting location: control cabinet
- Dimensions: h270 x w140 x d199 [mm]
- Weight: 4.4 [kg]
