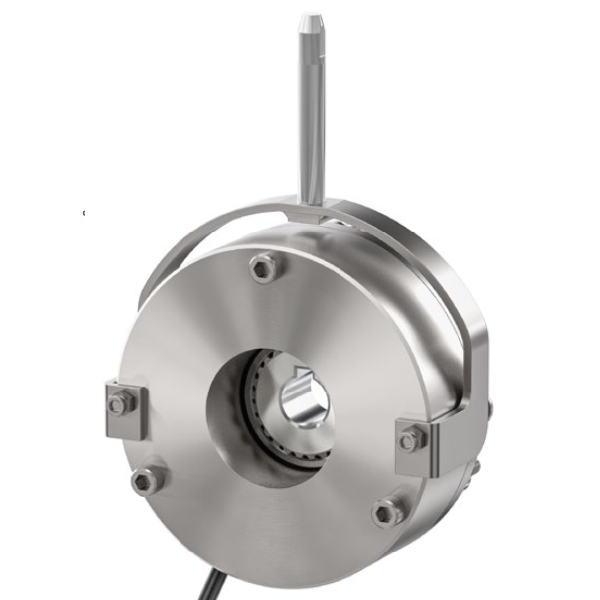

Kendrion-Intorq BFK557 Spring-applied brake
Compact, pre-assembled brakes: Reliable, maintenance-free and versatile
These brakes are ideal for use in access systems, automated guided vehicles (AGVs) and medical technology.
The brake's compact unit with a fixed air gap and integrated mounting screws allows for uncomplicated and cost-efficient installation. This design eliminates the need for any maintenance work.
With options such as special mounting screws, various mounting directions, common voltage variants and hub bores, they adapt flexibly to different requirements.
Technical data
- Size: 1 to 5
- Height 31.1 mm to 34.8 mm
- Min. holding torques 0.24 to 4 Nm
- Design types Can be mounted on the housing or flange side
- Standard nominal voltages: 24 V, 103 V, 180 V, 205 V
- Protection class: IP00
- Thermal class: F (155°C)
- Ambient temperature -20 to 40°C
- Duty cycle 100% ED
- Nominal backlash 1
- Options: Nominal voltage, hub bore,
- mounting direction, manual release (BG03-05)
