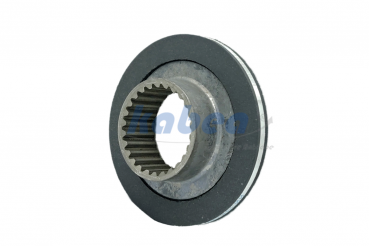

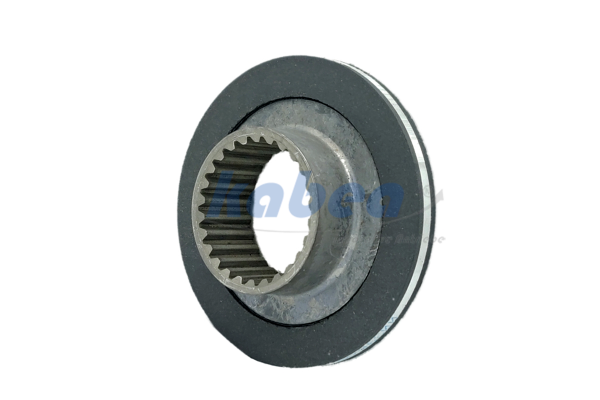

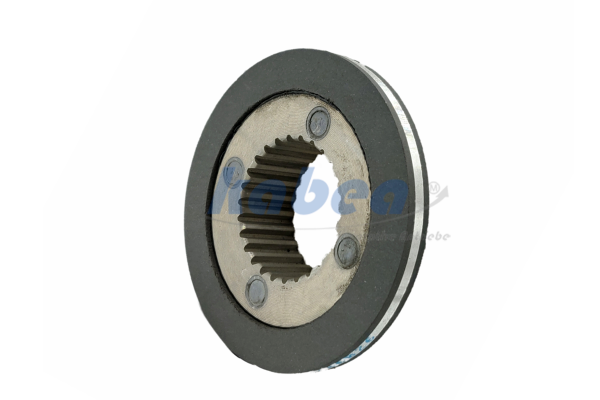

Rotor for spring-applied brake Intorq BFK458-20 AL WR wear-reduced
The INTORQ BFK458 brake is an electrically releasable springapplied brake with a rotating braking disk (rotor) that is equipped with friction linings on both sides.
In a de-energised state, the rotor is stretched between the armature plate and a counter friction face by a normal brake force that is produced by pressure springs.
The low-wear rotor has a harder brake lining and can therefore perform more friction work before it has to be replaced.
technical data:
- Manufacturer: Intorq/Kendrion
- Size: 20
- Material: Aluminum
- Version: Low-wear
- Ident-No. of the manufacturer: 00425468
- Weight: 1.4kg
