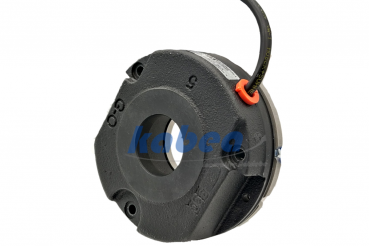

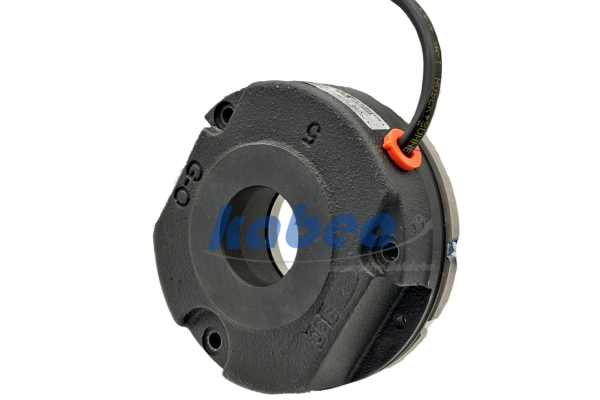

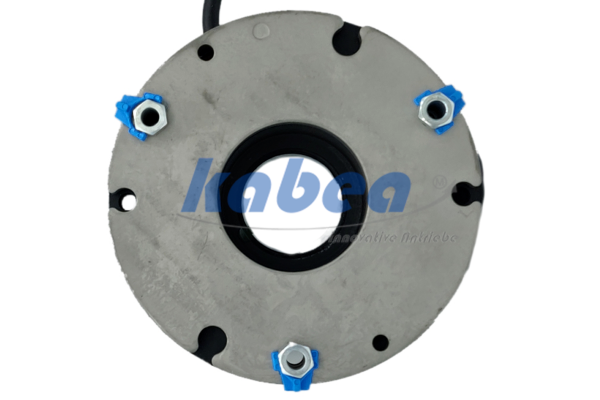

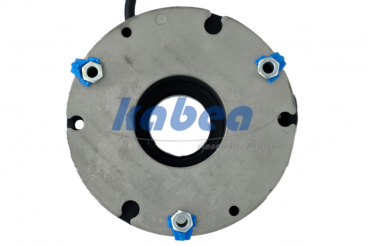

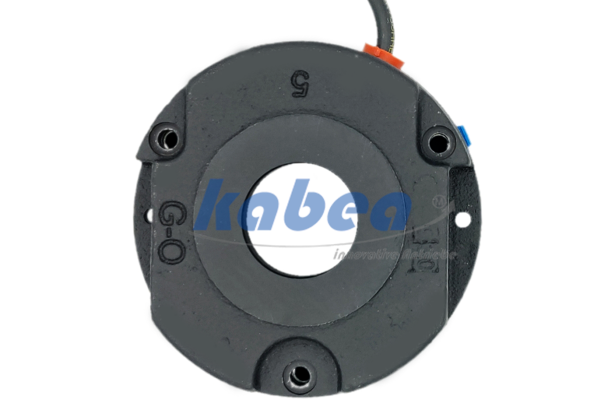

INTORQ BFK458-16N Stator 103VDC 80Nm
Electromagnetically released spring-applied brakes are used wherever masses in motion have to be decelerated as quickly as possible or where masses must be held in a defined position.
The main components of the modular system INTORQ BFK458 is the basic modules N (non-adjustable braking torque).
The greatest degree of flexibility is achieved for a broad range of applications by combining the basic modules N with specific modules.
technical data:
- Manufacturer: Intorq/Kendrion
- Type: INTORQ BFK458-16N
- Manufacturer's Part Number: 00520176
- Size: 16
- Design: N (Fixed Torque)
- Rated voltage: 103 VDC
- Characteristic torque: 80 Nm
- Weight:8.3 kg
