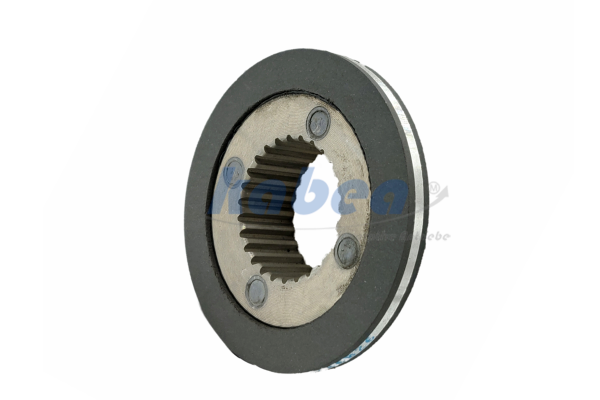

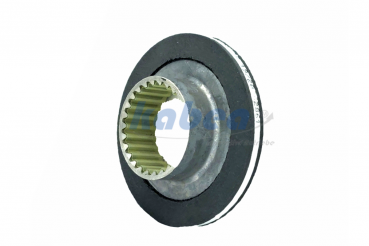

Rotor for spring-applied brake Intorq BFK458-16 ALG ST Noise-reduced
The INTORQ BFK458 brake is an electrically releasable spring applied brake with a rotating braking disk (rotor) that is equipped with friction linings on both sides.
In a de-energized state, the rotor is stretched between the armature plate and a counter-friction face by a normal brake force that is produced by pressure springs.
A plastic sleeve reduces the noise between the rotor and the hub (recommended for inverter operation).
This reduces torsional backlash and increases the service life of the brake.
technical data:
- Manufacturer: Intorq/Kendrion
- Type: INTORQ BFK458
- Size: 16
- Material: Aluminum
- Version: Silenced version (Noise-reduced )
- Manufacturer's Ident-No: 00401282
- Weight: 0,44 kg
