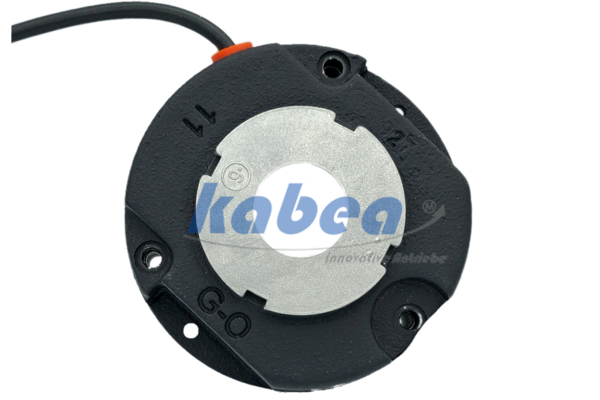

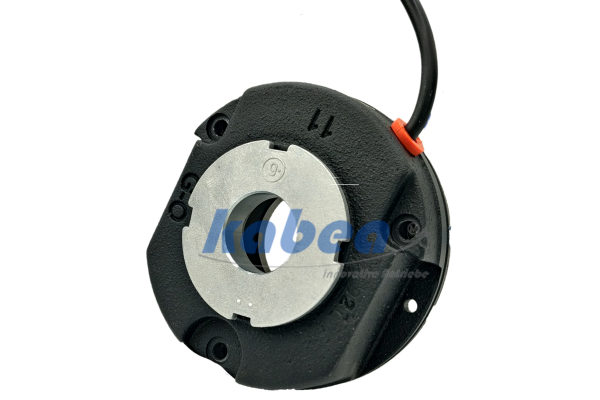

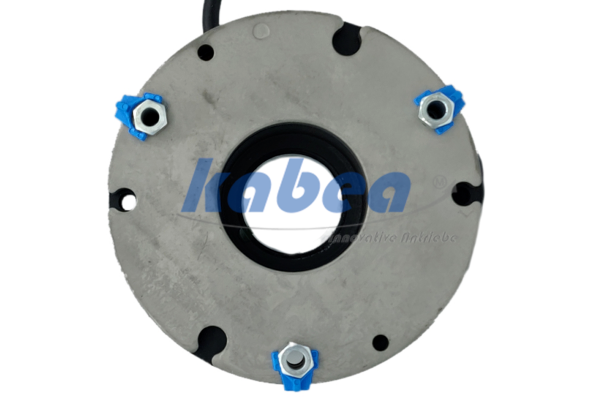

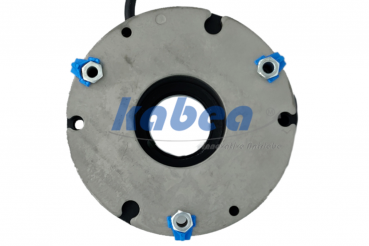

INTORQ BFK458-10N Coil 205VDC 16Nm
Electromagnetically released spring-applied brakes are used wherever masses in motion have to be decelerated as quickly as possible or where masses must be held in a defined position.
The main component of the modular system INTORQ BFK458 is the basic module N (non-adjustable braking torque).
The greatest degree of flexibility is achieved for a broad range of applications by combining the basic modules N with specific modules.
technical data:
- Manufacturer: Kendrion Intorq
- Type: INTORQ BFK458-10N
- Manufacturer's Part Number: 00520878
- Size: 10
- Design: N (Fixed Torque)
- Rated voltage: 205 VDC
- Characteristic torque: 16 Nm
- SVHC (REACH): 115-86-6
- Weight: 2,5 kg
