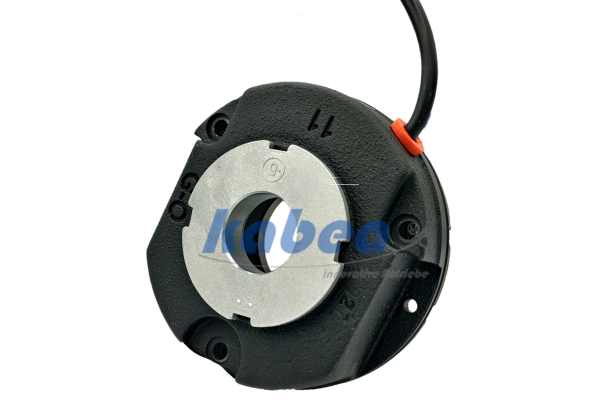

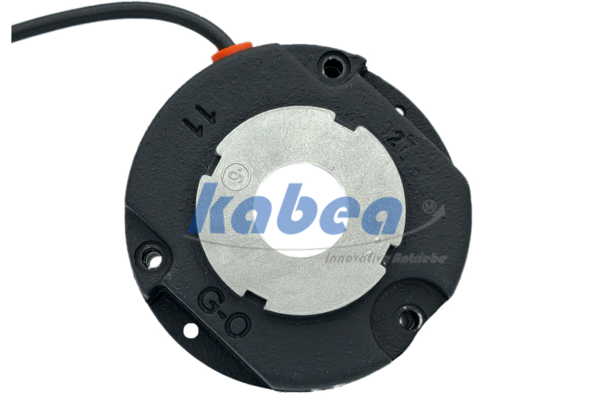

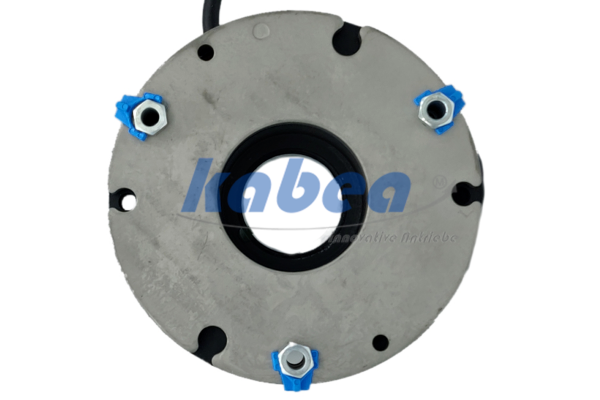

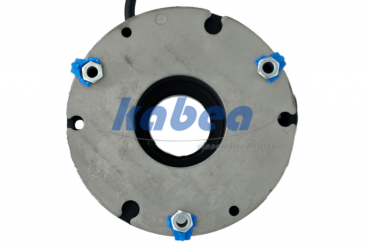

INTORQ BFK458-06E Coil 205V 4Nm
Electromagnetically released spring-applied brakes are used wherever masses in motion have to be decelerated as quickly as possible or where masses must be held in a defined position.
The main component of the modular system INTORQ BFK458 is the basic module E (adjustable braking torque).
The greatest degree of flexibility is achieved for a broad range of applications by combining basic modules E with specific modules.
Basic module E (adjustable braking torque): unscrewing the centrally located torque adjustment ring can reduce the spring force and, with it, the braking torque.
technical data:
- Manufacturer: Kendrion Intorq
- Type: INTORQ BFK458-06E
- Manufacturer's Part Number: 00519508
- Size: 06
- Design: E (with torque adjustment ring)
- Rated voltage: 205 VDC
- Characteristic torque: 1.5 - 4.0 Nm
- Weight: 0.9 kg
