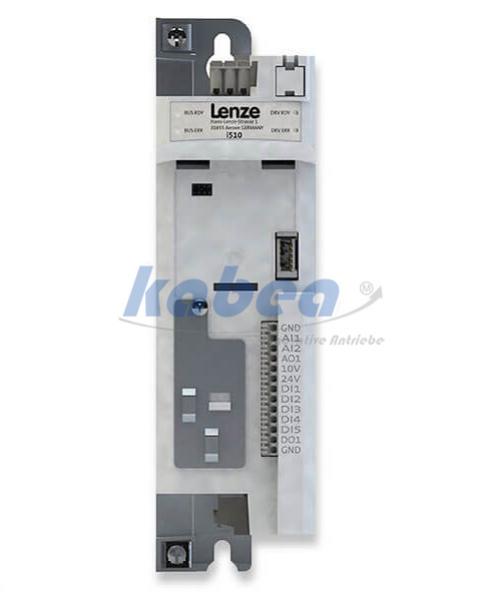

I51AE215F10V10001S Lenze inverter i510-C1.5/400-3 CANopen/Modbus RTU
i510 is the new inverter series - a streamlined design, scalable functionality and exceptionalm user-friendliness.
Overall, this provides a reliable and future-proof drive for a wide range of machine applications.
This reliable drive is ideal for conveyor, travelling, and winding drives, for pumps and fans and many other machine tasks.
Highlights:
- Compact size: Only 60 mm wide and 130 mm deep
- Can be directly connected without external cooling
- Innovative interaction options enable better set-up times than ever.
- Networking options via CANopen/Modbus.
- For diagnostics and parameterisation, the keypad, the Lenze Smart Keypad app
- (download from Google Play) or the EASY Starter can be used for Free.
- conforms to future standard in accordance with the EN 50598-2 efficiency classes (IE).
- Overload behavior: 200 % for 3 s; 150 % for 60 s
Functions:
- V/f characteristic control linear/quadratic (VFC plus)
- Sensorless vector control (SLVC)
- Energy saving function (VFC-Eco)
- Sensorless vector control for synchronous motors
- DC braking
- Brake management for low-wear brake control
- S-ramps for smooth acceleration and delay
- Flying restart circuit, PID controlle
Technical data:
- Manufacturer: Lenze
- Rated power: 1,5 [kW] / 2 [HP]
- Rated mains voltage: 3/PE 400/480 [VAC]
- Output current: 3,9 [A]
- Output frequencies: 0-599 [Hz]
- I/O extension: Basic I/O
- Feldbus-Network : CANopen/ Modbus RTU
- RFI filter: Integrated
- Mounting location: control cabinet
- Protection code: IP20
- Dimensions: H250 x B60 x T130 [mm]
- Weight: 1,35 [kg]
