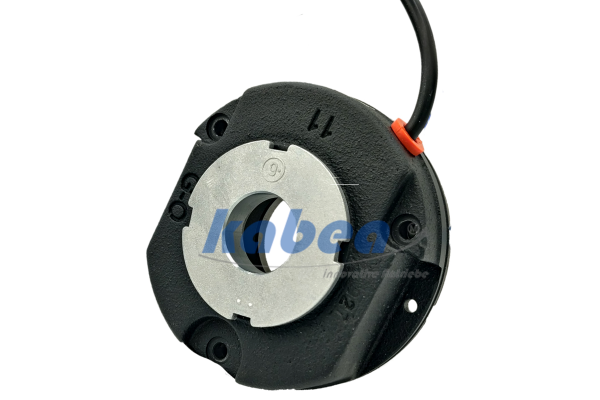

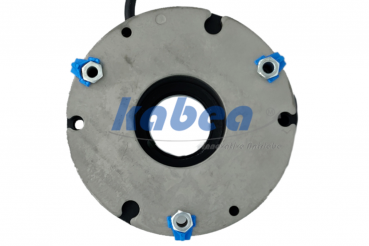

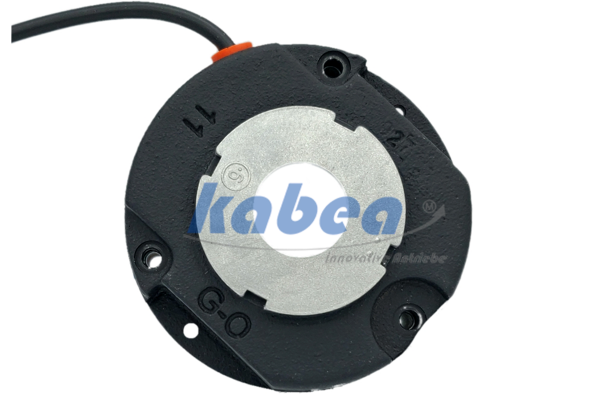

INTORQ BFK458-25E Stator 103VDC 400Nm
Electromagnetically released spring-applied brakes are used wherever masses in motion have to be decelerated as quickly as possible or where masses must be held in a defined position.
The main components of the modular system INTORQ BFK458 is the basic modules E (adjustable braking torque).
The greatest degree of flexibility is achieved for a broad range of applications by combining the basic modules E with specific modules.
Basic module E (adjustable braking torque) : unscrewing the centrally located torque adjustment ring can reduce the spring force and, with it, the braking torque.
technical data:
- Manufacturer: Intorq/Kendrion
- Type: INTORQ BFK458-25E
- Manufacturer's Part Number: 00521386
- Size: 25
- Design: E (with torque adjustment ring)
- Rated voltage: 103 VDC
- Characteristic torque: 400 Nm
- Weight: 30 kg
