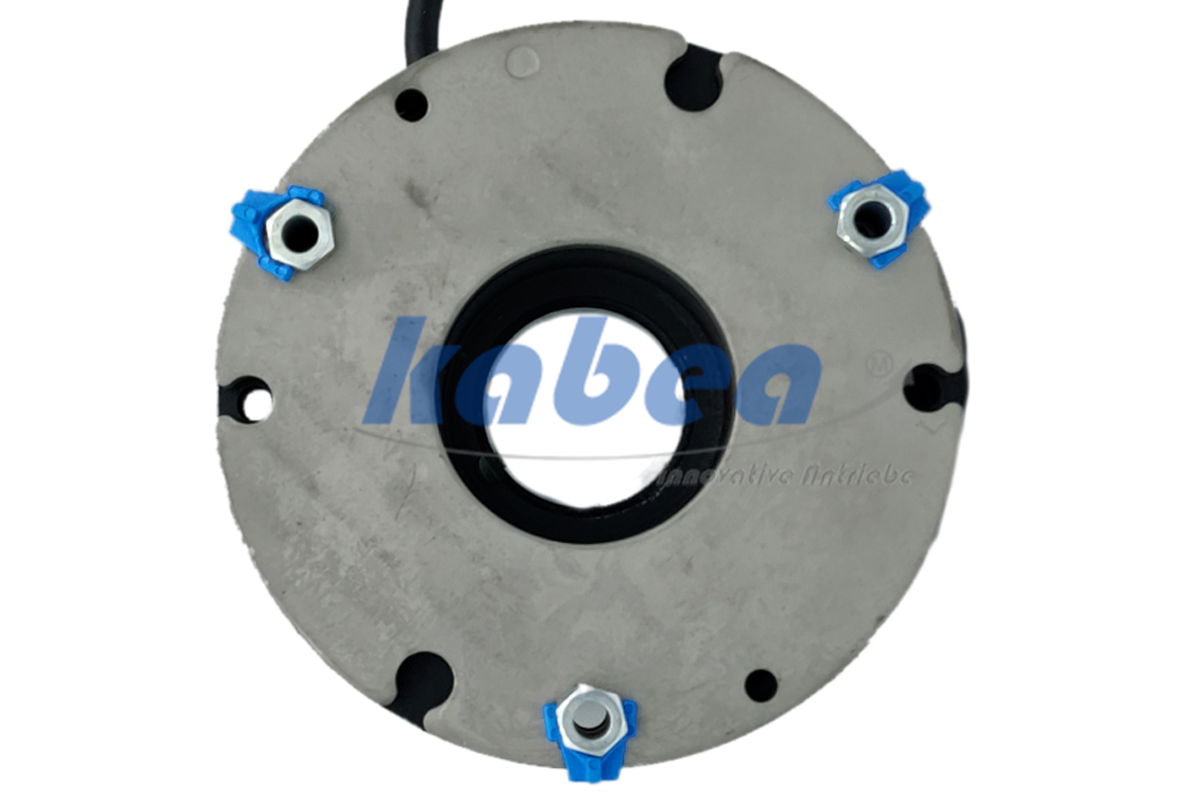

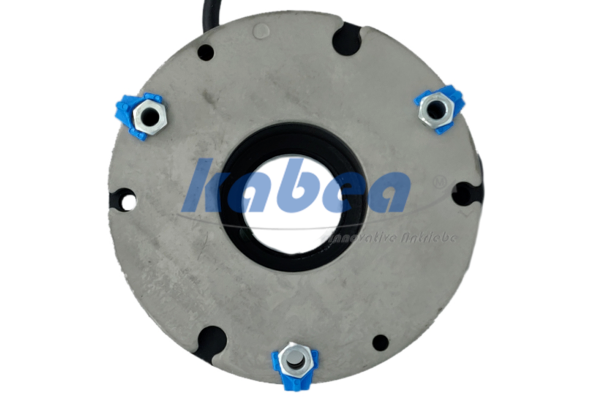

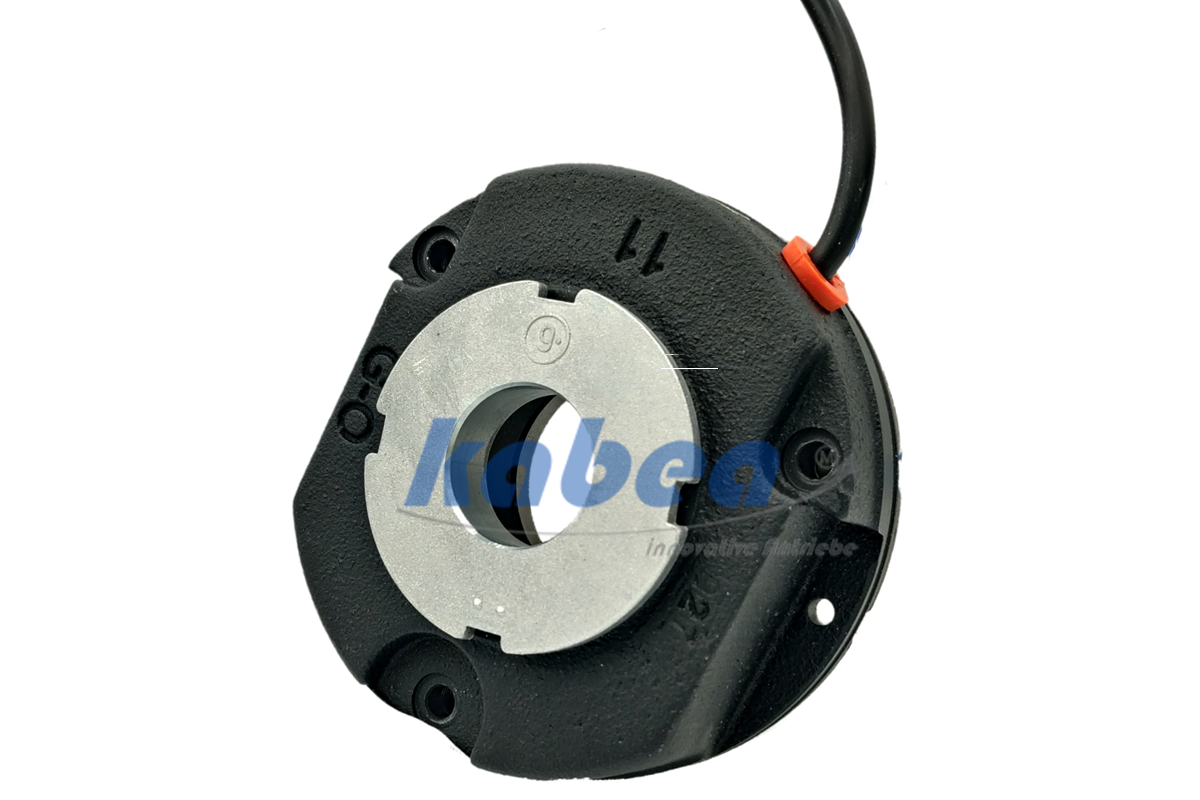

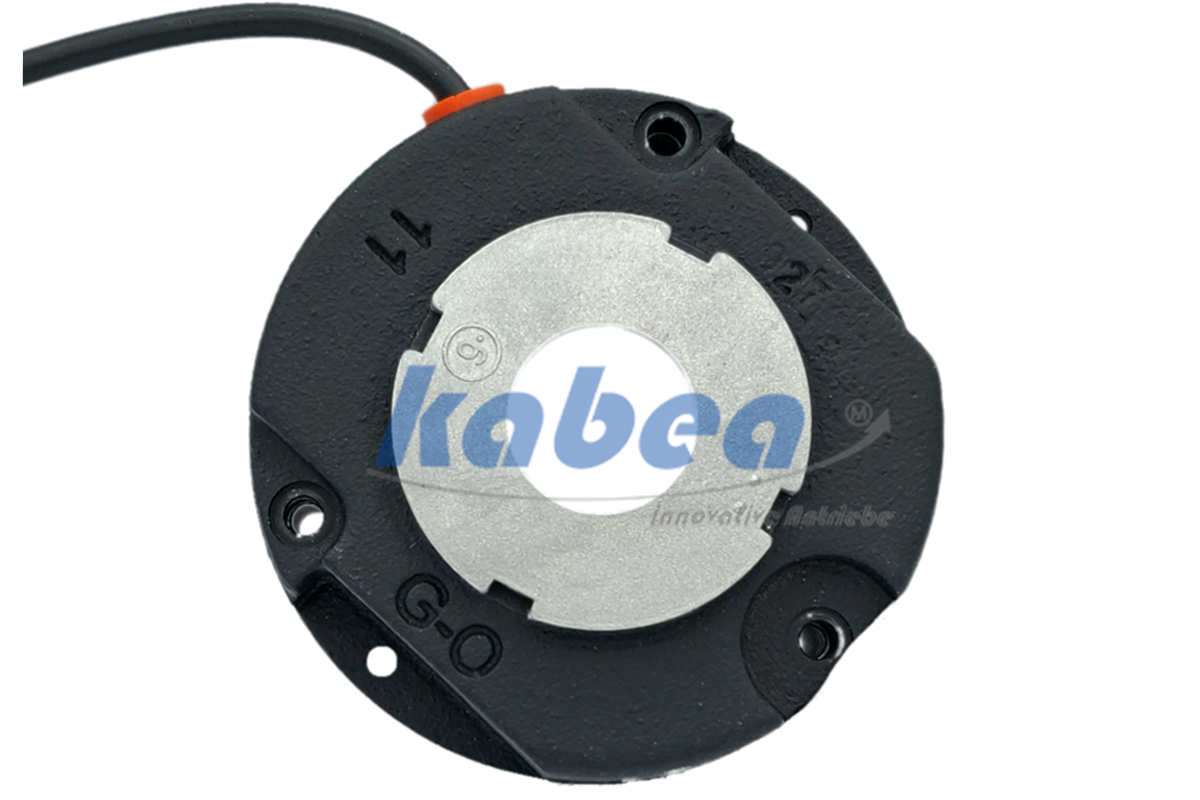

INTORQ BFK458-08E Coil 24VDC 8Nm
Electromagnetically released spring-applied brakes are used wherever masses in motion have to be decelerated as quickly as possible or where masses must be held in a defined position.
The main component of the modular system INTORQ BFK458 is the basic module E (adjustable braking torque).
The greatest degree of flexibility is achieved for a broad range of applications by combining basic modules E with specific modules.
Basic module E (adjustable braking torque) : unscrewing the centrally located torque adjustment ring can reduce the spring force and, with it, the braking torque.
technical data:
- Manufacturer: Intorq
- Type: INTORQ BFK458-08E
- Manufacturer's Part Number: 00519521
- Size: 08
- Design: E (with torque adjustment ring)
- Rated voltage: 24 [VDC]
- Characteristic torque: 3,5 - 8 [Nm]
- Weight: 1,5 [kg]
